16092A
Spring Clip Fixture
Use this test fixture with parallel electrodes for impedance evaluation of both lead and SMD components.

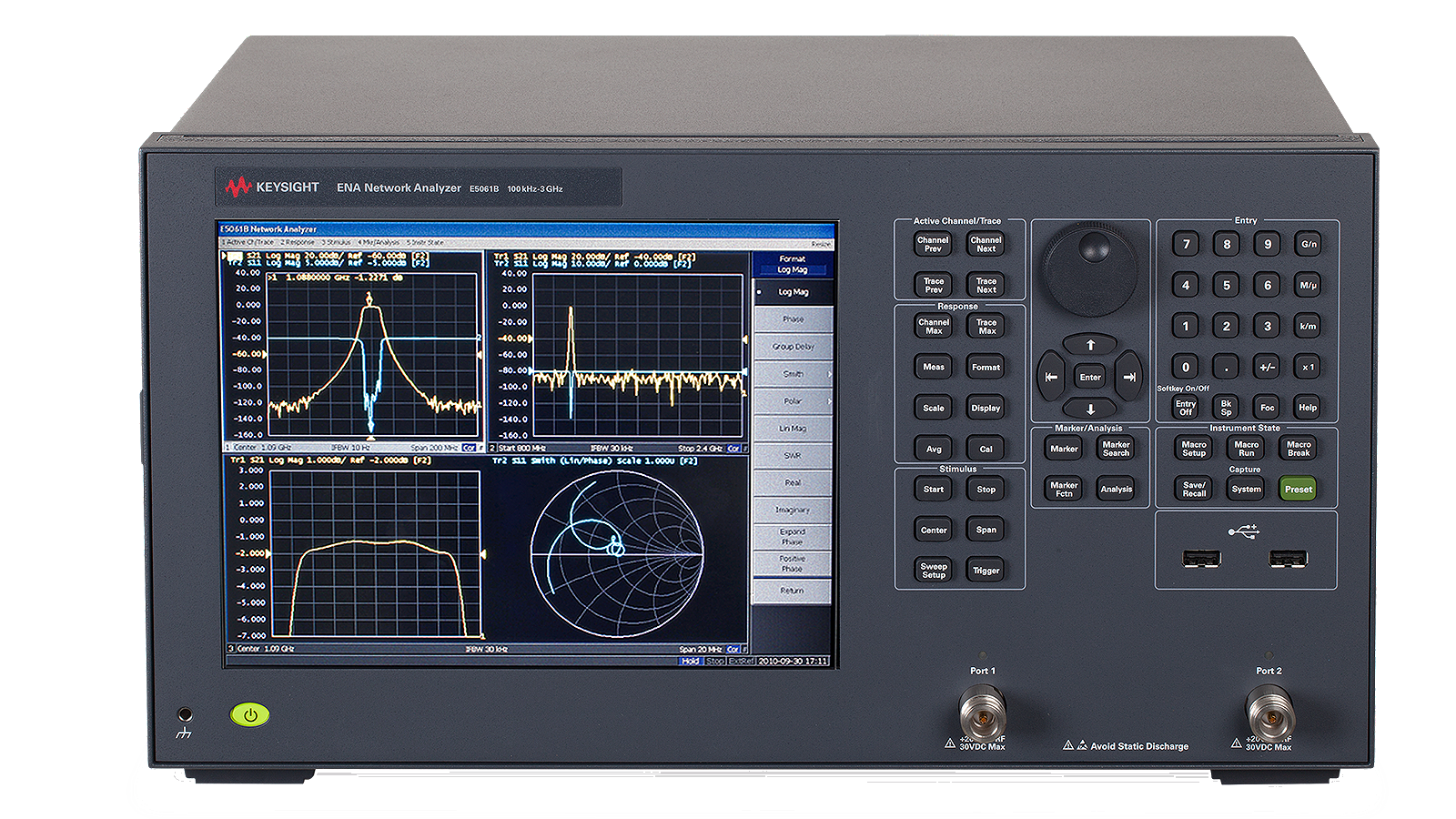

E5061B
Essential
The E5061B ENA vector network analyzer, 5 Hz to 3 GHz, 50/75 Ohm, 2-port, with impedance analysis option.
16196C
Parallel Electrode SMD Test Fixture, DC to 3 GHz
Perform accurate and repeatable measurements on SMD size of (0.6L ± 0.03) x (0.3W ± 0.03) x (0.27H to 0.33)
16201A
7 mm Terminal Adapter Kit
Connect test fixtures with a 7 mm connector to the network analyzer’s test ports (type-N)
16194A
High Temperature Component Test Fixture
Measure both axial/radial leaded devices and SMD within the temperature range from -55 to +200°C.
85515A
4-in-1 OSLT Mechanical Calibration Kit, DC to 9 GHz
Easily calibrate non-insertable devices with a type-N (f) 50 Ω open, short, load, and through in a compact unit.
16034G
SMD Test Fixture
Perform impedance evaluation on a minimum SMD size of 0.6(L) x 0.3(W) [mm]
85514A
4-in-1 OSLT Mechanical Calibration Kit, DC to 9 GHz, Type-N(m), 50 ohm
Easily calibrate non-insertable devices with a type-N (m) 50 Ω open, short, load, and through in a compact unit.
16198A
Bottom Electrode SMD Test Fixture
Designed for impedance evaluations of bottom electrode SMDs and supports 201 (mm) and 402 (mm) sizes
