The SJ001A WaveJudge Wireless Analyzer Toolset allows design and verification engineers to gain visibility into protocol and physical layer interaction in wireless transmissions.
Combining powerful over-the-air capture of IQ data with real-time protocol decoding and PHY analysis, the SJ001A is an essential tool for troubleshooting and optimizing wireless networks in the field and in the lab. The SJ001A analyzes all received IQ data no matter the source making it an unbiased solution for evaluation of messaging between devices and base stations in development and deployment.
Keysight’s SJ001A WaveJudge Wireless Analyzer Toolset is useful in several configurations:
- Standalone software solution to analyze imported IQ data
- IQ data capture, storage, decoding, and analysis of all traffic when combined with a WaveJudge wireless analyzer hardware platform, either the WJ5000A or the WJ5900A

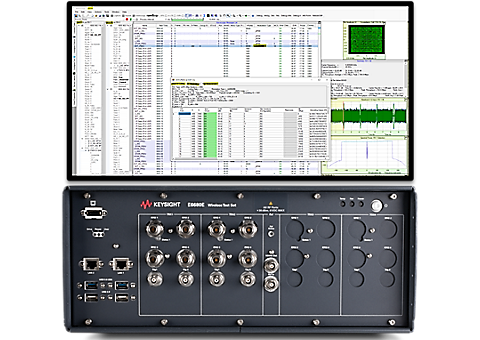

- Direct IQ data capture and storage with decoding and RF analysis of PHY and MAC layers when combined with Keysight’s E6680E Wireless Test Set hardware
Key Software Features:
- Decodes and analysis for all major wireless technologies such as 5G NR through 3GPP Release 18, NTN, RedCap, LTE, Wi-Fi, NB-IoT, eMTC, C-V2X, and O-RAN
- RF/PHY and upper layer messages with timing correlated to RF chart views for efficient troubleshooting
- Automatic error detection helps to find and resolve issues
- Comprehensive coverage of KPIs provides insights of device and network performance
Key Hardware Features:
- Independent, unbiased judge between vendors; all traffic decoded and analyzed regardless of the source
- Passive monitoring of communication between all entities such as gNB, eNB, O-RU, UE, and access points
- Find the issue at the very same moment it occurs with real-time analysis
- Catch hard-to-find and intermi
