Waveguide to APC-7 Adapter.

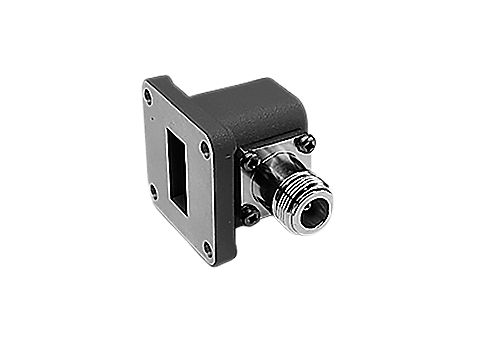

Product Image

P281B

Waveguide to APC-7 Adapter.

Transform a waveguide transmission line into a 50 Ω coaxial line with a maximum SWR of 1.25

Collection:

Superior RF Performance

  • Maximum SWR: 1.25

Features

  • Waveguide Designator: EIA WR-62 MIL-W-85/1-090
  • Flange Designator: UG-419/U MIL-F-3922/70A-008

Type

  • Optional Connector: Type-N female (see picture)

The Keysight P281B adapter transforms the waveguide transmission line into a 50-ohm coaxial line. Power can be transmitted in either direction, and each adapter covers the full frequency range of its waveguide band with SWR less than 1.3.

  • Brand

Keysight Technologies

  • Category
Accessories/ALL Channels
  • Publication Number
N/A
Request a Qoute

Superior RF Performance

  • Maximum SWR: 1.25

Features

  • Waveguide Designator: EIA WR-62 MIL-W-85/1-090
  • Flange Designator: UG-419/U MIL-F-3922/70A-008

Type

  • Optional Connector: Type-N female (see picture)

The Keysight P281B adapter transforms the waveguide transmission line into a 50-ohm coaxial line. Power can be transmitted in either direction, and each adapter covers the full frequency range of its waveguide band with SWR less than 1.3.

Connector size: 7 mm; Connector type: ; Frequency range: ; Grade: Waveguide; Type:
