- Frequency range DC to 26.5 GHz
- Multiport coaxial switch with four RF ports, one with 50-ohm termination
- Insertion loss: < 0.25 dB to 2 GHz, < 0.5 dB to 18 GHz, < 1.25 dB to 26.5 GHz
- SWR (through line): < 1.15 to 2 GHz, < 1.25 to 12.4 GHz, < 1.4 to 18 GHz, < 1.8 to 26.5 GHz
- Isolation: > 90 dB to 18 GHz, > 50 to 26.5 GHz
- Long life > 1 million cycles
- High repeatability: < 0.03 dB typical
- Current interrupts and position indication capability

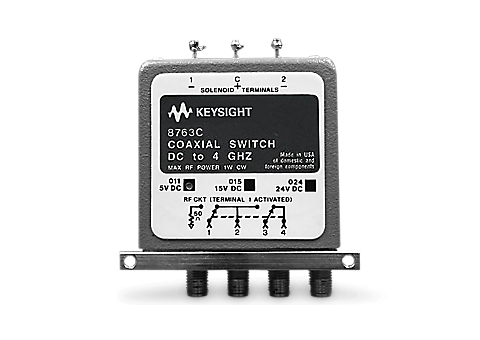

The Keysight 8763C offers excellent electrical and mechanical performance with the broadband operation, high isolation, low SWR, long life, and exceptional repeatability.
For more information about Keysight Switches, please visit Electromechanical, Microwave and RF Switch pages.
