Oscilloscope###M924XA PXIe Modular Oscilloscopes

>

PXIe Oscilloscope, 2 channel, 500MHz

M9242A

PXIe Oscilloscope, 2 channel, 500MHz

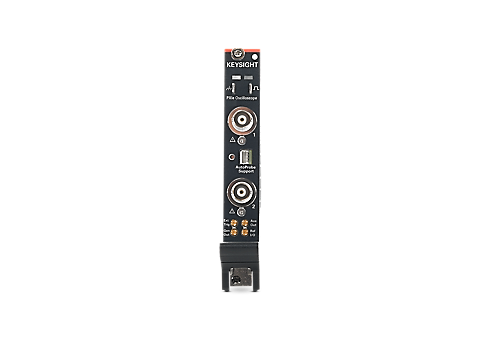

The InfiniiVision M9242A PXIe modular oscilloscopes provide 500 MHz of analysis bandwidth and support a wide array of probing and analysis tools.

Collection:

Oscilloscope###M924XA PXIe Modular Oscilloscopes

500 MHz bandwidth oscilloscope
2 analog channels
5 GSa/s sample rate
1,000,000 waveforms/second update rate
isolate signals in seconds with exclusive zone triggering
additional options: 20 MHz arbitrary waveform generator, 3-digit voltmeter, serial trigger and analysis, and mask testing

Keysight Technologies

ATP/Direct

5992-2003EN

500 MHz bandwidth oscilloscope
2 analog channels
5 GSa/s sample rate
1,000,000 waveforms/second update rate
isolate signals in seconds with exclusive zone triggering
additional options: 20 MHz arbitrary waveform generator, 3-digit voltmeter, serial trigger and analysis, and mask testing

ADC Bits: 8 Bits; Analog channels: 2; Bandwidth: 500 MHz; Bandwidth Upgrades: ; Digital channels: 0; Display size: N/A; Form factor: ; Instrument Type: ; Maximum memory depth: 4 Mpts; Maximum sample rate: 5 GSa/s; Module type: ; Number of channels: ; Operating System: N/A; Platform: ; Special Triggers: ; Type: ; Waveform Update Rate: 1,000,000 waveforms/sec
