Highlights

16 simultaneous channels, single slot PXI card

• Output Voltage: 0V to +30V or current 0mA to +20mA
• 16-Bit resolution with update rate/channel of 500kSa/s
• Memory Size: 1MB/channel

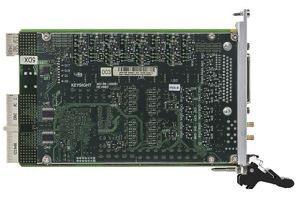

• The M9188A is a PXI based, 1-slot unipolar Dynamic DAC which has 16 channels capable of supplying typical waveforms at high voltages. It has 4 isolated banks with 4 channels in each bank.
• The M9188A’s capability of outputting high voltages meets voltage test requirements of 0V to +30V, therefore, eliminating the need for design and development of additional signal conditioning circuits for applications that require voltages of up to +30V such as an engine electronic control unit.
• With the ability to provide a dynamic current source signal of up to +20mA, the M9188A eliminates the need for an additional current transformer or source measure unit (SMU) for application tests that requires current source signals.
• Another unique feature of the M9188A is that it is designed with output amplifiers that provides protection from short-circuits and over-temperatures. Every channel is designed with an output disconnect switch that is capable of providing isolation between the module and application.
• With 1MB available memory per channel, the M9188A is able to simulate waveforms with a sampling period from 2µs to 512 µs. This effectively enables the M9188A to behave like a basic Arbitrary Waveform Generator (ARB) for waveforms of up to 500kSa/s update rate.
