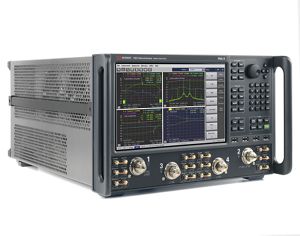

Keysight XN8-class Pro vector network analyzers include the N5241B-N5249B PNA-X and PNA-X Pro.
10 MHz to 8.5 GHz, 2 and 4 ports, one or two sources.
| Maximum frequency | 8.5 GHz |
| Number of built-in ports | 2, 4 |
| Maximum number of sources | 3 |
| Integrated low-noise receivers | 1 |
| View Technical Specification |
Built-in measurements like intermodulation distortion, power compression, and wideband active load pull
Integrated, independent, high-speed, ultra-low phase noise RF signal sources simplify your measurement setup
Direct receiver access and up to sixteen front-panel loops for precision network analysis on a wide variety of complex active devices
Compatibility with the widest variety of passive and active device measurement software applications
| Maximum number of sources | Integrated low-noise receivers |
| Maximum frequency | 26.5 GHz to 67 GHz |
| Number of built-in ports |
10 MHz to 8.5 GHz, 2 and 4 ports, one or two sources.
More than just a vector network analyzer, the PNA-X is the world’s most integrated and flexible microwave test engine for measuring active devices such as amplifiers, mixers, and frequency converters. The hardware includes two internal signal sources, a signal combiner, S-parameter and noise receivers, pulse modulators and generators, and a set of switches and RF access points. These hardware features provide a powerful core for a broad range of linear and nonlinear measurements, all with a single set of connections to your device under test.
| Simplify your test system by replacing an entire rack of equipment with one PNA-X network analyzer. | Reduce test time with the widest range of single-connection measurement applications. |
| Accurately test linear and nonlinear device characterization using advanced error correction. | Choose from the industry’s widest range of measurement applications for speed, accuracy, and ease of use in advanced RF test. |
| Accelerate insight into component behavior using a multitouch display and intuitive user. |
