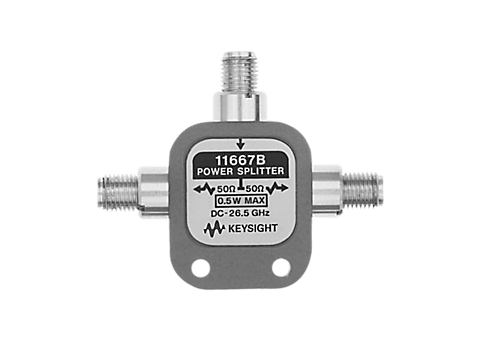

Power splitter, DC to 26.5 GHz, 3.5 mm female connectors

11667B

Power splitter, DC to 26.5 GHz, 3.5 mm female connectors

Provides excellent output SWR at the auxiliary arm when used for source leveling or ratio measurement applications

Collection:

Power Dividers and Splitters

Superior RF Performance

Equivalent output SWR: 1.22
Maximum input power: 0.5 W
Insertion loss: 7 dB
Tracking between two ports: 0.25 dB to 18 GHz, 0.40 to 26.5 GHz

The Keysight 11667B power splitter is recommended when making wideband ratio measurements using a Keysight 8757 scalar network analyzer. This two-resistor type power splitter provides excellent output SWR at the auxiliary arm when used for source leveling or ratio measurement applications. The tracking between output arms over a frequency range from dc to 26.5 GHz allows wideband measurements to be made with a minimum of uncertainty.

Keysight Technologies

Accessories/ALL Channels

N/A

Superior RF Performance

Equivalent output SWR: 1.22
Maximum input power: 0.5 W
Insertion loss: 7 dB
Tracking between two ports: 0.25 dB to 18 GHz, 0.40 to 26.5 GHz

Amplitude Tracking: +/- 0.25 dB; Connector type: ; Frequency range: ; Insertion Loss Choice: ; Maximum frequency: 26.5 GHz; Phase Tracking: n/a degrees; Type:
