PathWave Signal Generation for Custom Modulations, Embedded GUI Application

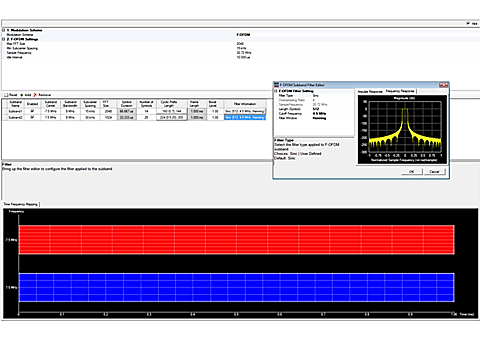

Create custom OFDM and IQ waveforms – PC license

Configurable Custom IQ modulation constellation settings for BPSK, QPSK, 8PSK, OOK, 2/4/8 ASK, 16-16384QAM, 2/4/8/16/32/64 FSK, MSK, S-OQPSK, ARTM Multi-h CPM, or user-defined constellations
Customizable quick setups for DVB-S2/S2X, APCO25, TETRA, NXDN, dPMR, DECT, DMR, ARIB, 802.15.4 (ZigBee BPSK and O-QPSK), 802.15.4g (Wi-SUN with FSK), ITU-T G.9959, 802.15.3d and more
Parameters setting such as symbol rate, filter setting, number of symbols, payload data sequence (PN, custom, user file) and more
Configure data and idle segments with a graphical user interface, and allow multiple segments configuration with different modulation settings
Export signal settings as 89600 VSA Setup files
Accelerate the signal creation process with a multi-touch graphic user interface
Support SCPI programming

Keysight supports tiered PathWave signal generation models with N-model applications (N7608APPC with prefix "N") for high-performance platform: M9484C VXG, E-model applications (E7608APPC with prefix "E") for mid-range platform: N5186A MXG.

Higher-tiered models can run on lower tiered HW platforms, but not vice versa. For example, N7608APPC could run on N5186A MXG, but E7608APPC cannot run on M9484C VXG.

KeysightCare software support subscription is included.

Keysight Technologies

Accessories/ALL Channels

N/A

Configurable Custom IQ modulation constellation settings for BPSK, QPSK, 8PSK, OOK, 2/4/8 ASK, 16-16384QAM, 2/4/8/16/32/64 FSK, MSK, S-OQPSK, ARTM Multi-h CPM, or user-defined constellations
Customizable quick setups for DVB-S2/S2X, APCO25, TETRA, NXDN, dPMR, DECT, DMR, ARIB, 802.15.4 (ZigBee BPSK and O-QPSK), 802.15.4g (Wi-SUN with FSK), ITU-T G.9959, 802.15.3d and more
Parameters setting such as symbol rate, filter setting, number of symbols, payload data sequence (PN, custom, user file) and more
Configure data and idle segments with a graphical user interface, and allow multiple segments configuration with different modulation settings
Export signal settings as 89600 VSA Setup files
Accelerate the signal creation process with a multi-touch graphic user interface
Support SCPI programming

Higher-tiered models can run on lower tiered HW platforms, but not vice versa. For example, N7608APPC could run on N5186A MXG, but E7608APPC cannot run on M9484C VXG.

KeysightCare software support subscription is included.

30-day free trial license: Yes; Activity: ; Audio/Video Broadcasting: ; Cellular: ; Compatible instruments: ; Digital Standards: ; General Purpose: ; Hardware connectivity: ; Industry segment: ; License types: ; Measurement functions: ; Software Type: ; Standards: ; Technology: ; Wireless Connectivity:
