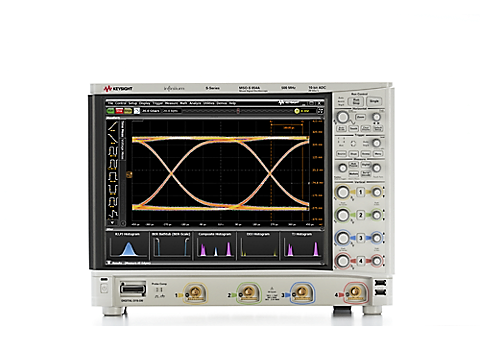

Mixed Signal Oscilloscope – Infiniium S Series 500 MHz 4 channel

MSOS054A

Mixed Signal Oscilloscope – Infiniium S Series 500 MHz 4 channel

The MSOS054A S-Series oscilloscopes have 500 MHz of bandwidth, a 15” XGA capacitive touch screen, and a 10-bit analog-to-digital converter

Collection:

Oscilloscope###Infiniium S‑Series Oscilloscopes

500 MHz bandwidth (upgradable)
4 analog plus 16 digital channels
achieve up to 16 bits of vertical resolution with our advanced system architecture
capture a longer signal trace with 20 GSa/s maximum sample rate and 100 Mpts/channel of standard memory
Get superior signal integrity with an average system effective number of bits (ENOB) of 8.1 bits at full bandwidth
Gain increased usability with the multi-touch supported 15-inch capacitive touch screen and solid state drive for fast boot and reliability
Access a wide range of protocol, compliance, and analysis software

What’s included:

four N2873A 500-MHz passive probes
probe accessory pouch
Keysight I/O libraries suite
localized power cord, front panel cover
8 GHz BNC calibration cable
keyboard and mouse
user guide and programmer’s guide ship on oscilloscope drive
service guide available on Keysight.com
16-channel flying lead set logic probe, MSO cable, and MSO calibration fixture
Download BenchVue Basic app for free to control your instruments

Keysight Technologies

Distribution Preferred

5968-7141EN

500 MHz bandwidth (upgradable)
4 analog plus 16 digital channels
achieve up to 16 bits of vertical resolution with our advanced system architecture
capture a longer signal trace with 20 GSa/s maximum sample rate and 100 Mpts/channel of standard memory
Get superior signal integrity with an average system effective number of bits (ENOB) of 8.1 bits at full bandwidth
Gain increased usability with the multi-touch supported 15-inch capacitive touch screen and solid state drive for fast boot and reliability
Access a wide range of protocol, compliance, and analysis software

What’s included:

four N2873A 500-MHz passive probes
probe accessory pouch
Keysight I/O libraries suite
localized power cord, front panel cover
8 GHz BNC calibration cable
keyboard and mouse
user guide and programmer’s guide ship on oscilloscope drive
service guide available on Keysight.com
16-channel flying lead set logic probe, MSO cable, and MSO calibration fixture
Download BenchVue Basic app for free to control your instruments

ADC Bits: 10, up to 16 with high-res; Analog channels: 4; Bandwidth: 500 MHz; Bandwidth Upgrades: ; Channel Upgrades: No; Digital Channel Upgradeable: N/A; Digital channels: 16; Display size: 15; Effective Number of Bits (ENOB): 8; Form factor: ; Instrument Type: ; Max Waveform Update Rate: <1,000 Waveforms per second; Maximum memory depth: 800 Mpts; Maximum sample rate: 20 GSa/s; Noise Floor: 74; Operating System: Windows 10; Special Triggers: ; Type:
