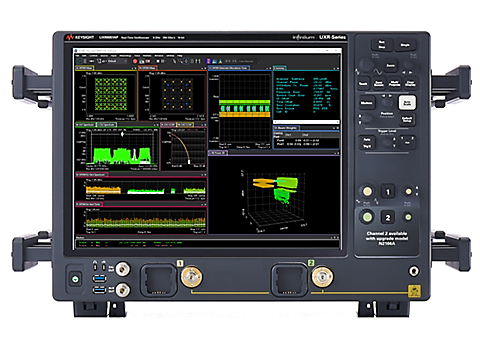

Infiniium UXR Real-Time Oscilloscope, 40 GHz, 256 GSa/s, 2Ch

The UXR0402B is the 40 GHz, 2 channel, 1.85 mm input, Infiniium UXR-Series real-time oscilloscope

40 GHz bandwidth and upgradable to 110 GHz of real-time oscilloscope bandwidth
2 channels and upgradable to 4 channels
500 Mpts of memory per channel included and upgradable to 2 Gpts of memory per channel
256 GSa/s sample rate on all channels
160 MHz DDC included and upgradable to 2.16 GHz DDC
160 MHz RTSA included and upgradable to 320 MHz RTSA
Optional configurable mmWave extension bandwidth window up to 30 GHz
High-definition 10-bit analog-to-digital converter (ADC)
The industry’s lowest noise and jitter measurement floor
The industry’s highest ENOB at all supported bandwidth
Optional calibration module N2126A for on-site self-calibration
High-speed SDA and Clock Recovery included
User-defined functions included
InfiniiSim Basic included to simply compensate for the channel loss with one block model
PrecisionProbe/Precis ionCable included helping quickly characterize the probe or cable loss

What’s included

Removable 960 GB enterprise grade SSD 2.5” hard drive
One Torque-Wrench 8 lb-in, 5/16 inch
One per channel adapter, 1.85 mm Female-to-Female
One coaxial adapter, 2.92 mm to 2.40 mm Female-to-Female
One connector saver, 3.5 mm Female-to-Female
Country-specific power cord
Front cover
USB keyboard
- Brand
Keysight Technologies
- Category
ATP/Direct
- Publication Number
3123-1313.EN

40 GHz bandwidth and upgradable to 110 GHz of real-time oscilloscope bandwidth
2 channels and upgradable to 4 channels
500 Mpts of memory per channel included and upgradable to 2 Gpts of memory per channel
256 GSa/s sample rate on all channels
160 MHz DDC included and upgradable to 2.16 GHz DDC
160 MHz RTSA included and upgradable to 320 MHz RTSA
Optional configurable mmWave extension bandwidth window up to 30 GHz
High-definition 10-bit analog-to-digital converter (ADC)
The industry’s lowest noise and jitter measurement floor
The industry’s highest ENOB at all supported bandwidth
Optional calibration module N2126A for on-site self-calibration
High-speed SDA and Clock Recovery included
User-defined functions included
InfiniiSim Basic included to simply compensate for the channel loss with one block model
PrecisionProbe/Precis ionCable included helping quickly characterize the probe or cable loss

What’s included

Removable 960 GB enterprise grade SSD 2.5” hard drive
One Torque-Wrench 8 lb-in, 5/16 inch
One per channel adapter, 1.85 mm Female-to-Female
One coaxial adapter, 2.92 mm to 2.40 mm Female-to-Female
One connector saver, 3.5 mm Female-to-Female
Country-specific power cord
Front cover
USB keyboard

ADC resolution: 10 bits; Analog channels: 2; Bandwidth: 40 GHz; Bandwidth Upgrades: ; Channel Upgrades: Yes; Digital Channel Upgradeable: No; Digital channels: 0; Display size: 15.4 inch; Electrical channels: 2; Form factor: ; Front-end connector size: ; Front-end connector size: 1.85 mm; Instrument Type: ; Max Waveform Update Rate: >285,700 Waveforms per second; Maximum memory depth: 2 Gpts; Maximum sample rate: 256 GSa/s; Minimum Rise/Fall Time: 11 ps(10-90%), 7.8ps(20-80%); Noise Floor: 340 µV(rms); Operating System: Windows 10; Optical channels: 0; Touch Screen: Yes; Type: ; Waveform Generator: No
