Model:

E9988EL

  • Publication Number
N/A

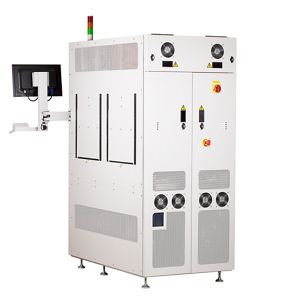

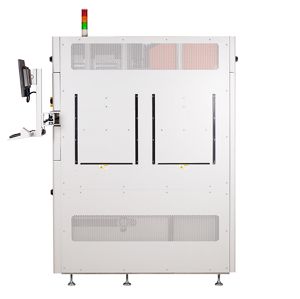

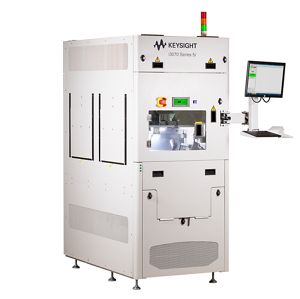

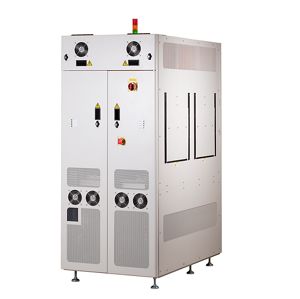

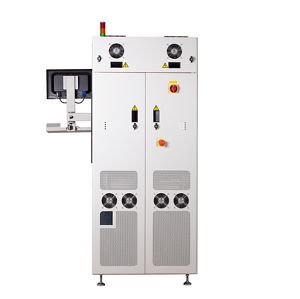

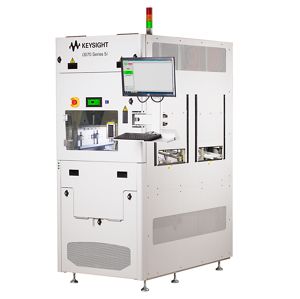

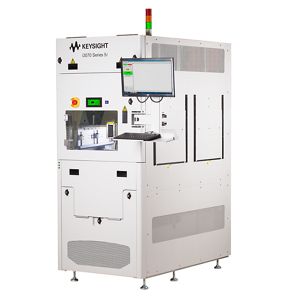

In-Line 2-Module ICT System; i337x, Series 5i

The E9988EL 2 Module In-line ICT, i3070 Series 5i, offers up to 2592 nodes testing, on a slimmer footprint. Built to stringent specifications for SMEMA compatibility.

Fixture actuation Press down
Maximum node count 2592
System width 800 mm
Maximum parallel testing 2

Reliable in-Circuit Defect Detection for PCB Manufacturing

Keysight in-circuit test systems provide high-performance, scalable solutions for testing complex, densely populated printed circuit boards in high-volume manufacturing. With flexible pin configurations, boundary scan support, vectorless test capabilities, and programmable analog measurements, these systems ensure fast and accurate detection of assembly faults such as solder defects, misoriented components, and wrong values. Built-in diagnostics, intuitive test development tools, and automation-ready integration streamline production workflows while reducing false calls and improving first-pass yield. Request a quote for one of our popular configurations today. Need help selecting? Check out the resources below.

High fault coverage

Detects a wide range of structural defects, such as solder opens, shorts, and incorrect component placement, ensuring improved product quality and reduced rework costs.

Scalable test pin design

Supports high-density boards with flexible pin-count configurations, allowing adaptation to various board sizes and complexities without changing hardware.

Built-in analytics

Provides real-time test metrics, deep data insights, and automated reporting directly on the tester. Enables faster root-cause analysis, improves productivity on complex boards, and supports seamless scaling to enterprise-level analytics.

Integrated boundary scan

Performs structural diagnostics through standard test access ports (TAPs), eliminating the need for intrusive probing or additional hardware instrumentation.

System width 800 mm to 1800 mm
Maximum node count Maximum parallel testing
Fixture actuation Vacuum, Press down

The E9988EL 2 Module In-line ICT, i3070 Series 5i, offers up to 2592 nodes testing, on a slimmer footprint. Built to stringent specifications for SMEMA compatibility.

Highlights

Fast. Accurate. Reliable.

  • Short-wire fixturing technology ensures transportability, repeatability and stability
  • Innovative design ensures easy maintenance and fixture change
  • Compact chassis, only 800 mm or 31.5” in length
  • Single point of contact for your automated ICT solution
  • Comprehensive in-system suite of boundary scan tools
  • The i3070 Series 5i Inline ICT retains the popular and proprietary Keysight short-wire fixturing technology used in our stalwart Keysight 3070 and i3070 systems.
  • Short wire fixture technology eliminates problems commonly found with long wire fixturing, such as noise and deterioration of test stability. This translates into transportable, repeatable and stable tests on your i3070 Series 5i, even if you need to deploy tests halfway across the globe, or on different manufacturing sites.
  • The i3070 Series 5i Inline ICT brings ease of use to the busy line operator and test engineer. The card cage is mounted on heavy-duty slides, and can be easily pulled out to facilitate replacement of module cards.
  • An ergonomically designed drawer unit enables fixtures to be easily loaded onto or unloaded from the test system. These features save both time and effort, especially for lines running a higher mix of products.
  • An array of tools like intelligent fixture identification, board orientation detection and test plan revision controls are available to help you develop automation solutions for testing today’s complex printed circuit board assemblies.
  • The i3070 Series 5i is fully backward compatible with your 3070 and i3070 test programs.
  • For more information about ict systems, please visit ICT System – i3070.
