HDMI 2.2 Cable Test Cat4 Eye Test

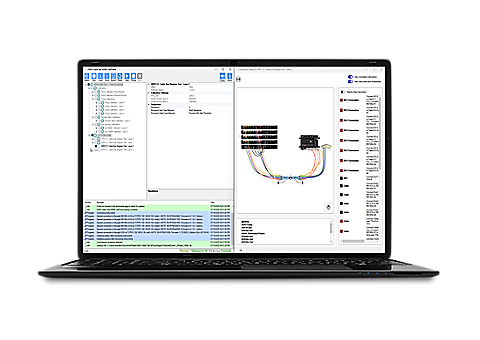

N5992HPCD CAT4 Cable Eye Test Software provides a dedicated test environment for validating CAT4 cables against the electrical performance requirements defined in the HDMI 2.2 cable test specification. It enables accurate eye diagram analysis and signal integrity assessment to ensure compliance with HDMI 2.2 standards, supporting efficient verification and troubleshooting throughout the test process.

The Keysight N5992HPCD Cable Test Eye Solution is engineered to support precise compliance and signal integrity testing for HDMI 2.2 Category 4 cables. It delivers advanced eye-diagram measurements, enabling high-resolution insight into cable performance at the physical layer. By leveraging automated testing capabilities, this solution helps engineers streamline validation workflows and ensure repeatable, accurate results.

Seamlessly integrating with Keysight oscilloscopes, AWG and existing HDMI test setups, the N5992HPCD offers a robust and reliable platform for characterizing high-speed HDMI cables. Its focus on Category 4 cable compliance ensures compatibility with the demanding requirements of next-generation 4K/8K video and high dynamic range (HDR) content delivery. Designed for efficiency and precision, this solution is essential for manufacturers seeking to meet the latest HDMI standards with confidence.

Keysight partner BitifEye Digital Test Solutions, market leader for high-speed digital test automation, provides integrated solutions that complement the Keysight instrument portfolio. To learn more about BitifEye and their wide range of software and hardware products and services, visit www.bitifeye.com.
