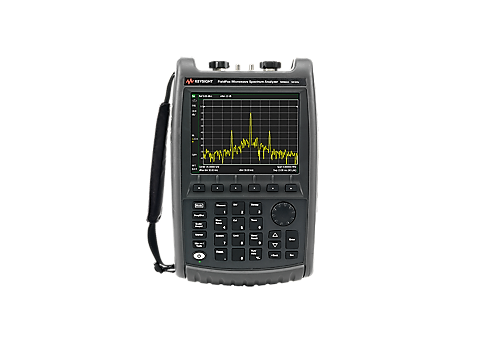

FieldFox 50 GHz Microwave Spectrum Analyzer

N9962A

FieldFox 50 GHz Microwave Spectrum Analyzer

A lightweight, durable, microwave spectrum analyzer, interference analyzer, distance-tracking generator, preamplifier, power meter, and more

Collection:

Network Analyzers###FieldFox Handheld Microwave and RF Analyzers

Never Sacrifice Capability or Portability

Keysight’s FieldFox handheld spectrum analyzers are equipped to handle your toughest working environments during routine maintenance, in-depth troubleshooting, and anything in between. Choose the Keysight FieldFox configuration that best meets your needs.

Make accurate spectrum analyzer measurements (± 0.5 dB) without warmup.
Capture intermittent signals with 10 MHz gap-free, real-time bandwidth.
Characterize radar pulse profiles with a portable solution.
Perform over-the-air measurements for 5G TF and LTE.
Capture I/Q data for RF signal monitoring and analysis.
Use GPS/GNSS for geolocation and timestamping.
Carry one lightweight unit at 3.2 kg (7.1 lb).

What’s included:

AC/DC adapter
Localized power cord
Rechargeable Li-ion battery
Soft carrying case with backpack and shoulder straps
Quick Reference Guide

Keysight Technologies

Distribution Preferred

5990-9783EN

Never Sacrifice Capability or Portability

Make accurate spectrum analyzer measurements (± 0.5 dB) without warmup.
Capture intermittent signals with 10 MHz gap-free, real-time bandwidth.
Characterize radar pulse profiles with a portable solution.
Perform over-the-air measurements for 5G TF and LTE.
Capture I/Q data for RF signal monitoring and analysis.
Use GPS/GNSS for geolocation and timestamping.
Carry one lightweight unit at 3.2 kg (7.1 lb).

What’s included:

AC/DC adapter
Localized power cord
Rechargeable Li-ion battery
Soft carrying case with backpack and shoulder straps
Quick Reference Guide

Additional SA Based Features: ; Applications: ; Bandwidth: 10 MHz; Bandwidth options: ; Cable and Antenna Analyzer: No; DANL @1 GHz: -159 dBm; Form factor: ; Frequency: 50 GHz; Instrument Type: ; Maximum analysis bandwidth: 10 MHz; Maximum bandwidth: 10 MHz; Maximum frequency: 50 GHz; Maximum real time bandwidth: 10 MHz; Measurement functions: ; Number of built-in ports: ; Output power: Up to 4 dBm; Overall Amplitude Accuracy: ±0.3 dB; Phase Noise @1 GHz (1 MHz offset): -113 dBc/Hz; Phase Noise @1 GHz (30 kHz offset): -108 dBc/Hz; Phase noise @1 GHz (10 kHz offset): -111 dBc/Hz; Power measurement using USB sensor: ; SA Start Frequency: 5 kHz; Spectrum Analyzer: Yes – Standard; Standard Attenuator Range: 30 dB; Standard Attenuator Step: 5 dB; TOI @1 GHz (3rd Order Intercept): +13 dBm; Type: ; VNA capabilities: No; Vector Network Analyzer: No
