Essential PNT Emulator Hardware features the Keysight (formerly Spirent) PNT Xe platform.

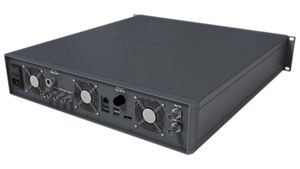

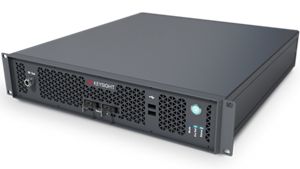

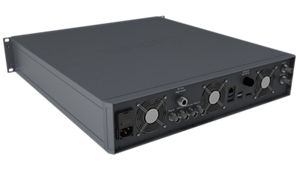

PNT Xe is a compact, rack-mountable GNSS simulator with multi-constellation support and guided-workflow software for development and production testing.
| Emulation options | Frequency bands: L1, L2, L5, L6; Up to 2 bands concurrently |
| Modular design | Up to 2 software-defined radio (SDR) cards; 1RF output |
Simulate GPS, Galileo, GLONASS, BeiDou, QZSS, IRNSS, and SBAS signals across dual-frequency bands from a single RF output.
Set up scenarios with minimal training using built-in constellation and navigation modeling, reducing the learning curve and risk of human error.
Deploy across functional testing, performance evaluation, and production-line validation with a compact 2U form factor suited to lab and field environments.
Add a second SDR card or enable additional constellations and signal capabilities through software feature keys — without returning the unit for service.
| Modular design | Up to 2 software-defined radio (SDR) cards; 1RF output |
| Emulation options | Frequency bands: L1, L2, L5, L6; Up to 2 bands concurrently |
PNT Xe is a compact, rack-mountable GNSS simulator with multi-constellation support and guided-workflow software for development and production testing.
PNT Xe is a compact, rack-mountable GNSS simulator with multi-constellation support and guided-workflow software for development and production testing.
| Emulation options | Frequency bands: L1, L2, L5, L6; Up to 2 bands concurrently |
| Modular design | Up to 2 software-defined radio (SDR) cards; 1RF output |
Built on Spirent’s industry-standard architecture, PNT Xe delivers multi-frequency, multi-GNSS simulation with up to 128 channels, 5 mm RMS pseudorange accuracy, low phase noise, and exceptional frequency stability. It also offers optional support for AES-M Code alongside all current GNSS constellations and frequencies, with 100% removable SSD storage for secure test environments.
