Output Rating- 160 W
- Output 1: 0 to 6 V, 0 to 10 A
- Output 2: 0 to 25 V, 0 to 2 A
- Output 3: 0 to 25 V, 0 to 2 A
Programming Accuracy ±(% of output + offset)
- Voltage: 0.03% + 3 mV, 0.03% + 5 mV, 0.03% + 5 mV
- Current: 0.05% + 4 mA, 0.04% + 3 mA, 0.04% + 3 mA
Ripple & Noise (20 Hz to 20 MHz)
- Normal Mode Voltage: <350 µVrms/ 2 mV p-p, < 1 mVrms/ 5 mVpp, < 1 mVrms/ 5 mVpp
- Normal-mode current: <4 mA rms, <2 mA rms, <1 mA rms
Readback Accuracy ±(% of output + offset)
- Voltage: 0.04% + 3 mV, 0.03% + 5 mV, 0.03% + 5 mV
- Current: + 0.05% + 5 mA, 0.04% + 3 mA, 0.04% + 3 mA
- Low Range Current, 20 mA: 0.25% + 80 uA

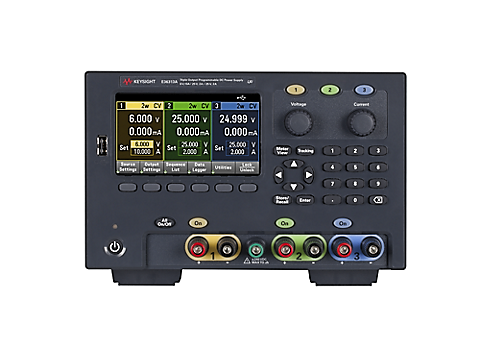

The E36313A Series triple output power supply is ready for your bench application. With low output ripple/noise and accurate voltage/current measurements, you can test with confidence. You have access to advanced features such as data logging, output sequencing, list mode, and output coupling. The E36312A (80 W) offers the same feature set with reduced power and the E36311A (80 W) is the most economic model with reduced feature set.
