Output ratings (0 °C to 40 °C) two outputs

• Range 1: 0 to 35 V / 0.8 A
• Range 2: 0 to 60 V / 0.5 A

Programming accuracy (25 °C ± 5 °C), ± (% output plus offset)

• Voltage: < 0.05% + 10 mV (< 0.1% + 25 mV for output two; Keysight models E3646, E3647A, E3648A, E3649A)
• Current: < 0.2% + 10 mA

Ripple and noise 20 Hz to 20 MHz

• Normal mode voltage: < 8 mVpp / 1 mVrms
• Normal mode current: < 4 mArms

Readback accuracy (25 °C ± 5 °C), ± (% output plus offset)

• Voltage: < 0.05% + 5 mV (< 0.1% + 25 mV for output two; models E3646A, E3647A, E3648A, E3649A)
• Current: < 0.15% + 5 mA (< 0.15% + 10 mA for output 2; models E3646A, E3647A, E3648A, E3649A)

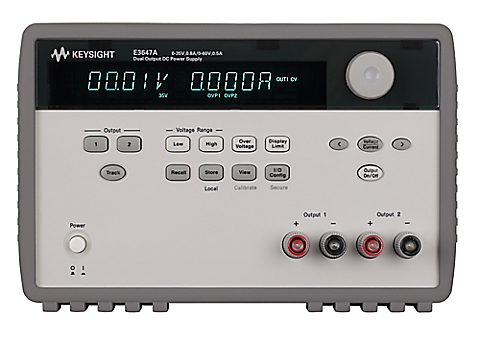

The E3647A 60 W dual output bench power supply offers dual-range flexibility with a low and high voltage range. The low voltage range allows the power supply to output more current. The E3640 Series dual output power supply has models with single and dual outputs — easy automate tests with GPIB or RS232.
