Software for Bit Error Ratio Testers

>

Adjustable ISI Package for M8000 Series of BER Test Solutions

M8070ISIB

Adjustable ISI Package for M8000 Series of BER Test Solutions

Simplify receiver testing by offering unprecedented flexibility for handling test channels

Collection:

Software for Bit Error Ratio Testers

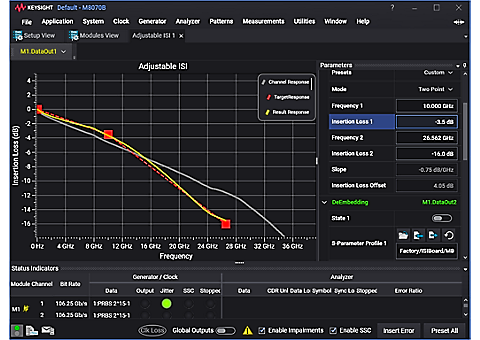

Inter-symbol-interference (ISI) emulation
Channel embedding and de-embedding
Adjustable loss range at Nyquist frequency
- [-3dB, +2dB] with 0.5dB accuracy for M8045A pattern generator
- [-20dB, +10dB] with 0.1dB accuracy for M8042A pattern generator

The M8070ISIB package for M8040A and M8050A BERT platforms is designed to accelerate the development and validation of chips, devices, transceiver modules, sub-components, boards, and systems with serial I/O ports in the server, computing, data center, and communications industry.

It is tailored for receiver (input) testing for many popular interconnect standards that use PAM4 and NRZ data formats such as Ethernet, PCIe, and USB.

Keysight Technologies

ATP/Direct

5992-1525EN

Inter-symbol-interference (ISI) emulation
Channel embedding and de-embedding
Adjustable loss range at Nyquist frequency
- [-3dB, +2dB] with 0.5dB accuracy for M8045A pattern generator
- [-20dB, +10dB] with 0.1dB accuracy for M8042A pattern generator

It is tailored for receiver (input) testing for many popular interconnect standards that use PAM4 and NRZ data formats such as Ethernet, PCIe, and USB.

Compatible instruments: ; License types: ; Standards: ; Test types:
