Active termination adapter, 40 GHz, Autoprobe 3

N7011A

Active termination adapter, 40 GHz, Autoprobe 3

Address applications such as HDMI, DisplayPort and MIPI M-PHY with this single-ended adapter for Keysight UXR-Series oscilloscopes.

Collection:

Probes and Probe Accessories

40 GHz single-ended active termination adapter supporting 1.85 mm / 2.4 mm cable input
Low attenuation setting (1.18:1) for high SNR, low noise measurements
Ability to terminate signal to a 50 Ω non-ground voltage (VTERM)

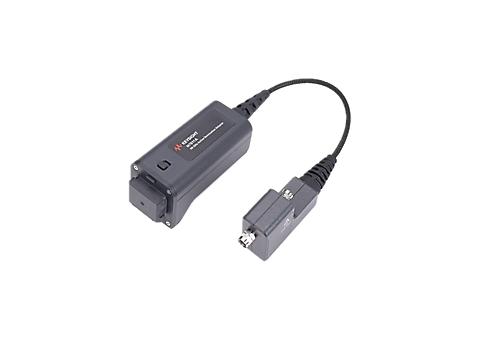

The Keysight N7011A active termination adapter is a 40 GHz single-ended adapter featuring a user-adjustable common termination voltage (VTERM) and extremely low noise performance.

The adapter was designed to address applications such as HDMI, DisplayPort and MIPI M-PHY. The oscilloscope can internally control the termination voltage to keep it between -4.0 V to +4.0 V. Utilizing low attenuation ratio setting (1.18:1), the adapter enables an extremely low noise floor.

This adapter is compatible with Infiniium UXR-Series oscilloscopes installed with software version 11.71 or higher.

Keysight Technologies

Accessories/ALL Channels

3125-1273.EN

40 GHz single-ended active termination adapter supporting 1.85 mm / 2.4 mm cable input
Low attenuation setting (1.18:1) for high SNR, low noise measurements
Ability to terminate signal to a 50 Ω non-ground voltage (VTERM)

The Keysight N7011A active termination adapter is a 40 GHz single-ended adapter featuring a user-adjustable common termination voltage (VTERM) and extremely low noise performance.

This adapter is compatible with Infiniium UXR-Series oscilloscopes installed with software version 11.71 or higher.

Compatible instruments: ; Type:
