DC Electronic Loads###DC Electronic Load Modules N6700 Power System

>

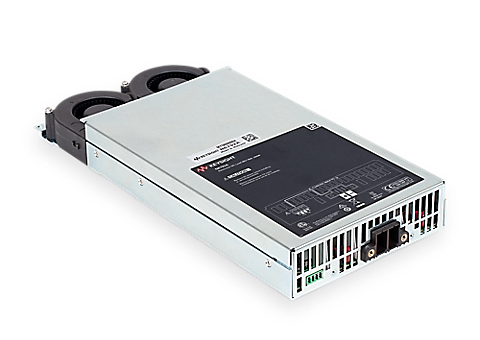

N6792A

200 W module, double-wide

DC electronic load module, 1U Height, 60 V, 40 A, 200W

Collection:

DC Electronic Loads###DC Electronic Load Modules N6700 Power System

Double-wide module, up to 2 modules in mainframe
Maximum 200 Watts sinking power per module
Voltage: Up to 60 V
Current: Up to 40 A
Advanced operating Modes: CV, CC, CR, CP
Arbitrary waveform generation
High speed synchronized digitization of voltage and current
Superior command processing time and current slew rate
USB, LAN, GPIB interfaces standard
N6700C style user interface for ease of use and familiarity

The Keysight N6792A offer 1U height modular electronic DC load module for N6700C mainframes. Capable of sinking power up to 200 W per channel and be configured with up to two modules in a mainframe.

Keysight Technologies

Distribution Preferred

5992-1880EN

Double-wide module, up to 2 modules in mainframe
Maximum 200 Watts sinking power per module
Voltage: Up to 60 V
Current: Up to 40 A
Advanced operating Modes: CV, CC, CR, CP
Arbitrary waveform generation
High speed synchronized digitization of voltage and current
Superior command processing time and current slew rate
USB, LAN, GPIB interfaces standard
N6700C style user interface for ease of use and familiarity

The Keysight N6792A offer 1U height modular electronic DC load module for N6700C mainframes. Capable of sinking power up to 200 W per channel and be configured with up to two modules in a mainframe.

4-wire remote sense: ; Adjustable slew rate: Yes; Arbitrary waveform generation: ; Data logger: Yes; Input current: 40 A; Input voltage: 60 V; LIST mode: Yes; Maximum power: 200 W; Measurement accuracy: 25.2mV; Noise and ripple: 5mVrms; Number of inputs: 1; Programming accuracy: 25.2mV; Regenerative power: ; Type:
