DC Electronic Loads###DC Electronic Load Modules N6700 Power System

>

N6791A

100 W module, single-wide

DC electronic load module, 1U height, 60 V, 20 A, 100W

Collection:

DC Electronic Loads###DC Electronic Load Modules N6700 Power System

Single-wide module, up to 4 modules in mainframe
Maximum 100 Watts sinking power per module
Voltage: Up to 60V
Current: Up to 20A
Advanced operating modes: CV, CC, CR, CP
Arbitrary waveform generation
High speed synchronized digitization of voltage and current
Superior command processing time and current slew rate
USB, LAN, GPIB interfaces standard
N6700C style user interface for ease of use and familiarity

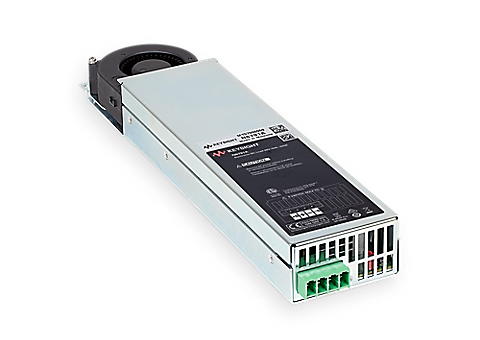

The Keysight N6791A offers a 1U height modular electronic DC load module for N6700C mainframes. Capable of sinking power up to 100 W per channel and be configured with up to four modules in a mainframe.

Keysight Technologies

Distribution Preferred

5992-1857EN

Single-wide module, up to 4 modules in mainframe
Maximum 100 Watts sinking power per module
Voltage: Up to 60V
Current: Up to 20A
Advanced operating modes: CV, CC, CR, CP
Arbitrary waveform generation
High speed synchronized digitization of voltage and current
Superior command processing time and current slew rate
USB, LAN, GPIB interfaces standard
N6700C style user interface for ease of use and familiarity

4-wire remote sense: ; Adjustable slew rate: Yes; Arbitrary waveform generation: ; Data logger: Yes; Input current: 20 A; Input voltage: 60 V; LIST mode: Yes; Maximum power: 100 W; Measurement accuracy: 25.2mV; Noise and ripple: 5mVrms; Number of inputs: 1; Programming accuracy: 25.2mV; Regenerative power: ; Type:
