10 MHz – 26.5 GHz, USB Noise Source nominal ENR 15dB

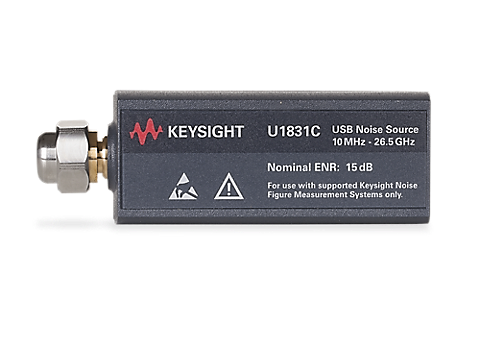

U1831C

10 MHz – 26.5 GHz, USB Noise Source nominal ENR 15dB

The USB-powered U1831C provides broadband noise figure measurements from 10 MHz – 26.5 GHz with modular signal analyzer and benchtop X-Series signal analyzers.

Collection:

Noise Figure Analyzers and Noise Sources###Noise Sources

Automatic upload of ENR data to the analyzers via USB connection significantly speeds up the overall setup time
Electronic storage of Excess Noise Ratio (ENR) calibration data decreases opportunity for user error
Temperature sensing improves measurement accuracy, leading to tighter specification of device performance

The U1831C is a versatile USB-powered smart noise source. The USB connection significantly reduces setup time and provides compatibility with noise figure analyzers and signal analyzers. The broadband noise source accurately measures noise figures from 10 MHz to 26.5 GHz.

Keysight Technologies

ATP/Direct

N/A

Automatic upload of ENR data to the analyzers via USB connection significantly speeds up the overall setup time
Electronic storage of Excess Noise Ratio (ENR) calibration data decreases opportunity for user error
Temperature sensing improves measurement accuracy, leading to tighter specification of device performance

ENR Automatic Download: Yes; ENR Range: 12 to 17 dB; Excess Noise Ratio (ENR): 12-17 dB; Frequency range: ; Maximum frequency: 26.5 GHz; Minimum Frequency Range: 10 MHz; Minimum frequency: 10 MHz; Temperature Compensation: Yes; Type: ; Works with: NFA, ESA-E Series, PSA-Series, X-Series (PXA, MXA, EXA, CXA)
